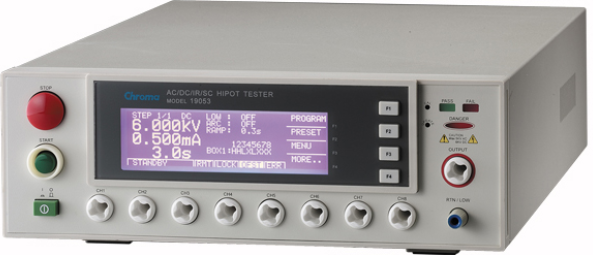

Tester per verifica rigidita' dielettrica AC/DC e misura resistenza di isolamento. Tre strumenti in uno.
Specifiche tecniche:
|
Model |
19053 |
|
Channels |
8 |
|
Programmable output voltage AC |
max 5kV AC |
|
Programmable output voltage DC |
max 6kV DC |
|
Misura resistenza di isolamento |
da 1Mohm a 10Gohm |
|
Ground continuity check (GC) |
disponibile |
| GFI shutdown | shutdown of the instrument when current imbalance > 0.5mA |
|
Interfaccia per connessione remota |
Standard RS-232 interface |
|
Open short check(OSC) function |
|
| shutdown of the instrument when current imbalance > 0.5mA |
|
| Flashover (ARC) detection | |
| Quick discharge of DUT in IR and DC test | |
| Pause mode | |
| UL and TUV approved | |
| CE mark | |
| Programmable ramp/fall and test time | |
| Programmable high/low limit | |
| Save/Recall program test function | |
| Remote control and interface support | |
datasheet serie Chroma 19070 e 19050
