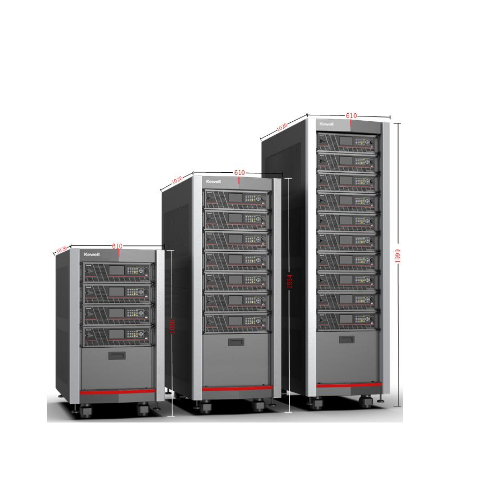

The C3000 Series is a high-precision programmable DC power supply boasting wide current range, high dynamic performance, and ultra-high power density. Featuring auto-range output and flexible voltage & current combinations, the C3000 Series is widely
used in industries such as PV, EV, and aviation.
Pro configuration
| Normal | Pro | |
| features | Fundamental, Cost-effective |
Fully-featured, Multi-scenario |
| DC power supply | YES | YES |
| IV simulation | - | YES |
| Automotive power curve | - | YES |
Yes means available , "-" means not available
Description
-Power output range: 0 ~ 15kW
-High power density: 15kW in 3U
-Current output range: 0 ~ 600A
-Voltage output range: 0 ~ 100V
-Parallel connection: up to 10 units
-AC voltage input: 342VAC ~ 528VAC
-PV simulation: Static MPPT, Multi-IV, EN50530, etc.
-Custom waveforms: triangle, square, and sine
-Automotive power curve: ISO16750-2, LV123, DIN40839, etc.
-RS232/LAN/USB communication interface
-Protections: OVP, OCP, OTP, OPP, etc.
-Remote voltage compensation
