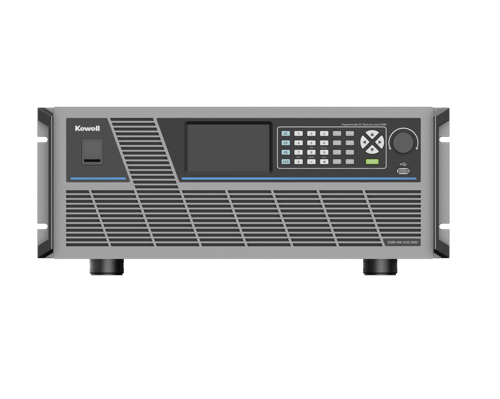

E5000 Series is a compact, high-power DC electronic load featuring wide operating range and high dynamic frequency. In 4U size, it powers up to 6.6kW and outputs voltage up to 1200V. It supports at most 10 E5000 devices in parallel operation.
Normal configuration
| Normal | Pro | |
| features |
Fundamental, Cost-effective |
Fully-featured, Multi-scenario |
| Basic mode(CC/CV/CR/CP/CCD) | YES | YES |
| Battery discharge | YES | YES |
| Short-circuit simulation | YES | YES |
| LIST mode | YES | YES |
| Dynamic resistance load (CRD) | - | YES |
| Composite modes(CVCC/CRCCICVCRIAUTO) | - | YES |
| Sine wave mode(SWD) | - | YES |
| Dynamic load sweep(SWP) | - | YES |
| OCP/OPP threshold setting | - | YES |
Yes means available , "-" means not available
Description
High power density: 6.6kW in 4U
Power output range: 6.6kW
Voltage output range: 0 ~ 150V, 0 ~ 600V, 0 ~ 1200V
Voltage Accuracy : 0.05%+0.025%F.S.
Current Accuracy : 0.1%+0.1%F.S
A variety of modes: CC, CV, CR, CP, CCD
Three voltage levels + three current ranges
Automatic GO/NG detection
Remote voltage compensation
Dynamic current/resistance load of 25kHz
RS485/CAN/LAN/USB communication
Optional GPIB
Protections: OVP, OTP
Up to 255 groups of programmable sequences
