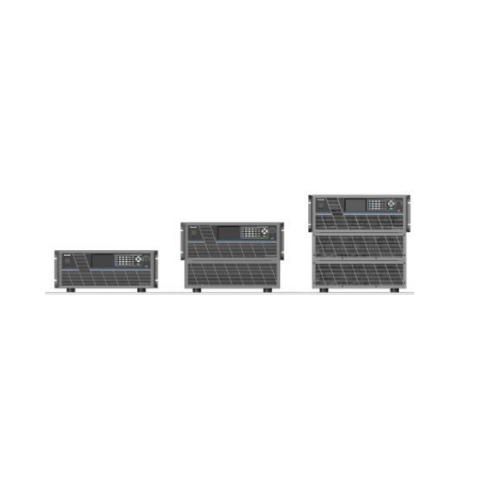

E5000 Series is a compact, high-power DC electronic load featuring wide operating range and high dynamic frequency. In 4U size, it powers up to 6.6kW and outputs voltage up to 1200V. It supports at most 10 E5000 devices in parallel operation.
Pro configuration
| Normal | Pro | |
| features | Fundamental, Cost-effective |
Fully-featured, Multi-scenario |
| Basic mode(CC/CV/CR/CP/CCD) | YES | YES |
| Battery discharge | YES | YES |
| Short-circuit simulation | YES | YES |
| LIST mode | YES | YES |
| Dynamic resistance load (CRD) | - | YES |
| Composite modes(CVCC/CRCCICVCRIAUTO) | - | YES |
| Sine wave mode(SWD) | - | YES |
| Dynamic load sweep(SWP) | - | YES |
| OCP/OPP threshold setting | - | YES |
Yes means available , "-" means not available
Description
-High power density: 6.6kW in 4U
-Power output range: 6.6kW
-Voltage output range: 0 ~ 150V, 0 ~ 600V, 0 ~ 1200V
-A variety of modes: CC, CV, CR, CP, CCD, and CRD
-Three voltage levels + three current ranges
-Automatic GO/NG detection
-Remote voltage compensation
-Dynamic current/resistance load of 25kHz
-Analysis of fuel cell impedance
-RS485/CAN/LAN/USB communication
-Optional GPIB
-Protections: OVP, OCP, OTP, OPP, etc.
-Dynamic frequency of 50kHz
-Up to 255 groups of programmable sequences
