Kewell S7000 Pro config. BI-DIRECTIONAL PROGRAMMABLE DC POWER SUPPLY High voltage version
pg22 catalogo

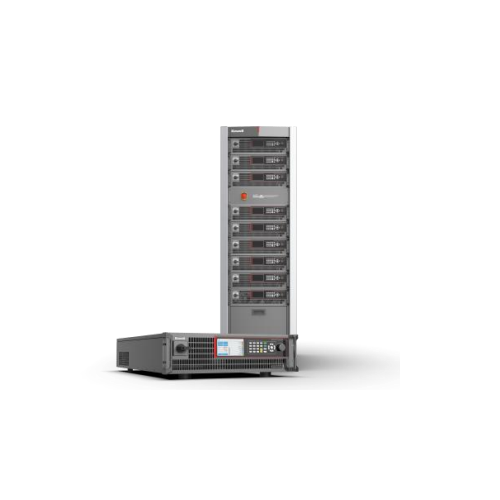

The S7000 Series is a high precision, regenerative DC power source. As a DC source, it supports dual quadrant energy flow, with high conversion efficiency and high power density. In 3U size, it outputs power up to 30kW and voltage up to 2000V. It supports parallel operation of multiple devices. HMI: Colorful touchscreen and knob. S7000 is applicable to testing of battery, battery stor-age inverter, EV, etc.
Pro configuration
| Normal | Pro | Ultra | |
| features | Fundamental, Cost-effective |
Fully-featured, Multi-scenario |
Ultimate experience, Lab testing-oriented |
| Bidirectional DC power supply | YES | YES | YES |
| IV simulation | - | YES | YES |
| Battery simulation | - | YES | YES |
| Battery test | - | YES | YES |
| DC electronic load | - | - | YES |
Yes means available , "-" means not available
Description
-function power density: 30kW in 3U
-Power output range: 0 ~ 30kW
-Voltage output range: 0 ~ 2000V
-Resolution : 0.01V/0.01A
-Accuracy (voltage/current) :≤0.05%F.S. / ≤0.1%F.S.

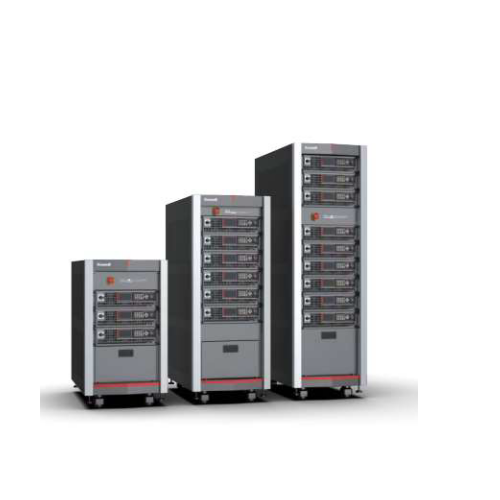

-Parallel connection: up to 20 units
-AC voltage input: 342VAC ~ 528VAC
-PV simulation: Static MPPT, Multi-IV, EN50530, etc.
-Battery simulation: 6 fixed types, custom type
-Battery charging and discharging test function
-RS485/CAN/LAN/USB communication interface
-Protections: OVP, OCP, OTP, OPP, etc.
-Remote voltage compensation
