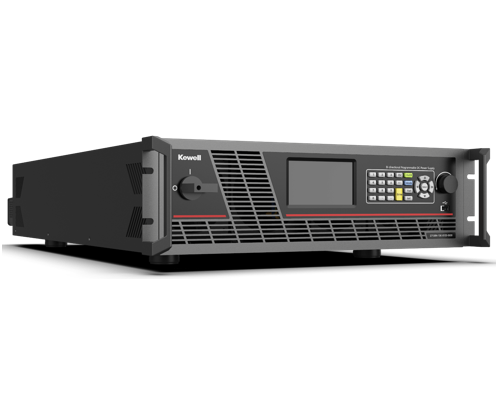

Kewell S7000 Normal config. BI-DIRECTIONAL PROGRAMMABLE DC POWER SUPPLY Low voltage version
S7000NG-10K-0100-0400 primo prodotto pg9 ( rigo da cancellare )
The S7000 Series is a high precision, regenerative DC power source. As a DC source, it supports dual quadrant energy flow, with high conversion efficiency and high power density. It also supports parallel operation of multiple devices.
Normal configuration
| Normal | Pro | Ultra | |
| features |
Fundamental, Cost-effective |
Fully-featured, Multi-scenario |
Ultimate experience, Lab testing-oriented |
| Bidirectional DC power supply | YES | YES | YES |
| IV simulation | - | YES | YES |
| Battery simulation | - | YES | YES |
| Battery test | - | YES | YES |
| Automotive power curve | - | YES | YES |
| DC electronic load | - | - | YES |
Yes means available , "-" means not available
Description
-Power output range: 0 ~ 15kW
-Current output range: 0 ~ 600A
-Voltage output range: 0 ~ 100V
-Resolution : 0.01V/0.01A
-Accuracy (voltage/current) :≤0.02%F.S. / ≤0.1%F.S.
-Size : 3U
-Parallel connection: up to 10 units
-AC voltage input: 342VAC ~ 528VAC
-List mode, support multi-step programming
-Custom waveforms: triangle, square, and sine.
-RS232/LAN/USB communication interface
-Protections: OVP, OCP, OTP, OPP, etc.
-Remote voltage compensation
