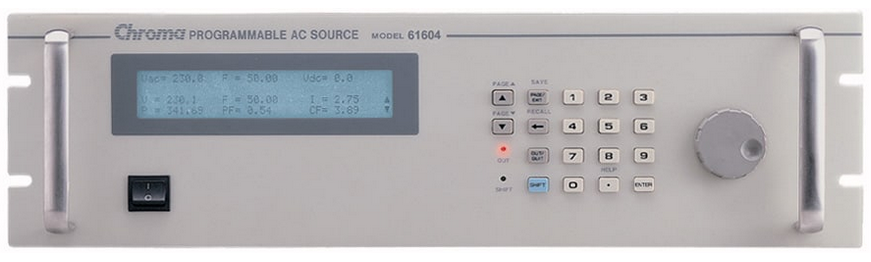

Alimentatore AC Chroma 61604 0-300V/15-1KHz/2KVA, 1ø

da Chroma


MODEL 61604
Power Rating 2KVA
Phase 1
Voltage Range 0-150V/0-300V/ Auto
Frequency DC. 15Hz~1kHz
Parallel Capability Not Available

Key Features:
  • Single-phase
  • Programmable slew rate setting for changing voltage and frequency
  • Programmable voltage and current limit
  • AC+DC output mode for voltage DC offset simulation
  • Comprehensive measurement capability
  • One-key recall for different voltage and frequency setting
  • High output current crest factor, ideal for inrush current testing
  • Built-in PFC, provide input power factor over 0.98 (full load)
  • Analog input for power amplifier
  • Turn on, turn off phase angle control
  • Remote control by GPIB, RS232, USB and Ethernet interface
