QuadView, the Next Generation Viewers for the Electronics Industry, from ASTER Technologies.
With a user friendly GUI, fast search functions and powerful graphics capabilities, QuadView provides fast graphic generation, automatic display of possible short locations, test fixture nail positions and clear display of even the largest boards.
QuadView is a powerful set of scalable board viewing modules that can be used either as a standalone viewer or fully integrated within customer's applications.
QuadView can be used in the design environment to assist in DfT and test coverage analysis at the schematic capture stage and during prototype debug. Within the manufacturing environment, it becomes an integral part of the repair cycle, assisting in the locating of faults and reducing repair time significantly.
Layout viewer

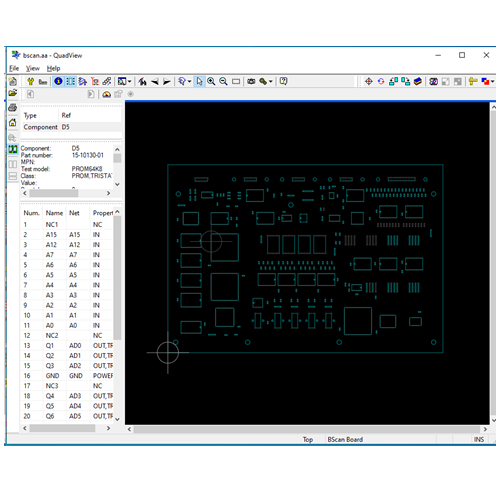

Layout views can be created from a number of industry formats such as GENCAD, CAMCAD, FATF, ODB++, or directly from any native CAD layout data such as Cadence, Mentor, Zuken, etc. The layout view can be flipped or rotated to visualize either the top or bottom side views, to enable direct correlation with the board under test.
Schematic viewer
QuadView has a unique digitization capability that allows users to create the schematic view directly from a searchable PDF file. Schematic views can also be created from other standard formats such as HPGL and Windows Metafile etc.
Netlist viewer
The innovative “Netlist Navigator” provides a virtual schematic view reconstructed directly from a netlist, which allows users to navigate easily through complex schematic hierarchy. It also provides a unique capability to visualize component pin functionality using advanced graphical symbols.
Test Program Quality Report
TPQR [Test Program Quality Report] is a “low-cost” and “easy-to-use” software tool for PCB analysis. Based on the industry leading "TestWay" coverage analyzer core, it makes it possible to quantify and qualify the test coverage for many inspection and test equipments.
Documentor
Multimedia viewer is a helpful paperless tool to view a large variety of documents in HTML format and link them to the project views. These HTML documents can include multimedia objects like video, pictures, sounds...
Fault ticket Analyzer
The hot-link feature provides full interaction between component and net references that appear as highlighted links within any type of paperless repair fault ticket, exported from test or inspection systems. This allows repair operators to quickly and easily find the location of faults, displayed in both the schematic and layout views. The fault ticket analyzer also simplifies test fixture debug and maintenance by displaying detailed tester channel and pogo pin information that is necessary to carry out fixture repair.
