Model technical specifications PEL-3032AE
| PEL-3032AE | ||
|---|---|---|
| SKU 01EL332AE0GT | ||
| POWER | 300W |
300W |
| RANGE | LOW | HIGH |
| VOLTAGE | 0-500V |
0-500V |
| CURRENT | 0-1.5A |
0-15A |
| MIN. OPER. VOLTAGE (dc) | 2.5V-1.5A | 2.5V-15A |

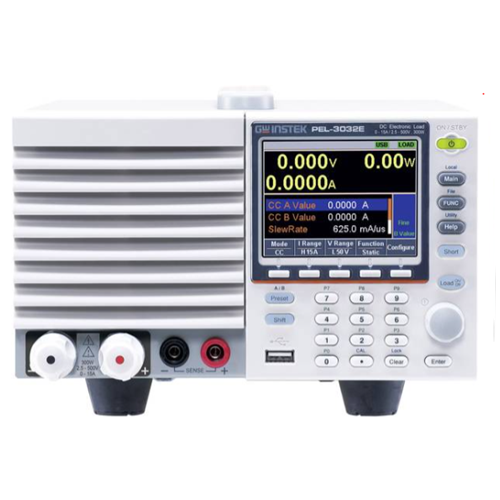

PEL-3000AE is a series programmable single-channel electronic load. In the series, PEL-3031AE provides 300W (1V~150V/60A) and PEL-3032AE provides 300W(2.5V~500V/15A) current sink capability. Inherited from the PEL-3000 series, PEL-3000AE has an easy-to-read LCD panel and user-friendly interface. This model features high speed and accurate measurement capability for electronic component, battery, portable charger and power products that require low to medium power consumption.
The PEL-3000AE series is designed for current sink operation starting from 60mA and aims at measurement applications, including charger, adapter, various power supply equipment, and portable charger.
PEL-3000AE Series Features
- 7 Operating Modes: CC, CV, CR, CP, CC+CV, CR+CV, CP+CV
- Fast/ Normal Sequence Function
- Soft Start
- Battery discharge test
- OCP、OPP test Automation
- Max. Slew Rate: 2.5A/us
- Dynamic mode
- Protection: OVP, OCP, OPP, OTP, RVP, UVP
- Remote Sense
- Integrate voltage, current and power measurement functions
- External Voltage or Resistance Control
- Rear Panel BNC、Trigger IN/OUT
- Analog External Control
- USB, LAN, RS-232&RS-485(Std.) / GPIB(Optional)
