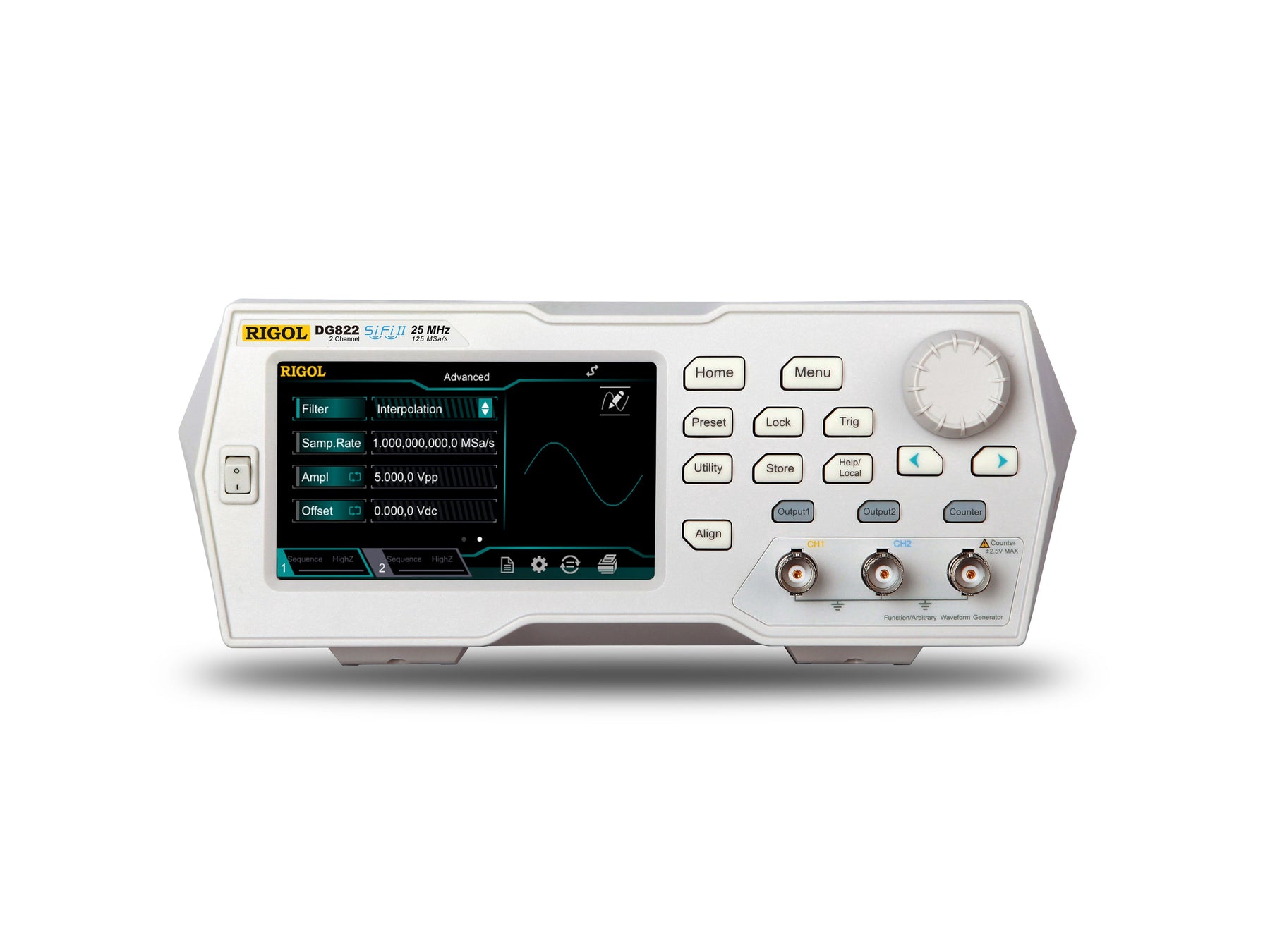

Generatore di funzioni con tecnologia Unique SiFi II (Signal Fidelity II) : genera forme d' onda arbitrarie punto per punto . SiFi II ha introdotto filtri multipli a garanzia di un segnale sempre piu' stabile, preciso, puro e con bassa distorsione.
Frequenza di uscita max 25MHz, velocità di campionamento 125 MSa/s, Risoluzione verticale 16bit, Memoria 2Mpts, canali 2.
Specifiche tecniche:
|
Channels
|
2
|
|
Out Frequency
|
25 MHz
|
|
Sample Rate
|
125 MSa/s
|
|
Memory depth
|
2 Mpts
|
|
Vertical Resolution
|
16 bits
|
|
Monitor
|
4.3'' TFT color touch screen
|
| Basic Waveforms | Sine, Square, Ramp, Pulse, Noise, DC, Dual-tone |
| Advanced Waveforms | PRBS, RS232, Sequence |
| Built-in Arbitrary Waveforms | 160 types of waveforms, including Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, HaverSine, Lorentz, etc. |
|
Standard Interface
|
USB Host&Device interface (standard); USB-GPIB function supported
|
|
Option
|
Single-dual CH Upgrade Option (only for DG831/DG821/DG811) , Memory Depth Upgrade Option
|
| Optional Accessories | 40 dB Attenuator, USB-GPIB Interface Converter |
|
Weight/Dimensions (W×H×D)
|
Package excluded: 1.75 kg / 238 mm × 97 mm × 266.6 mm
|
