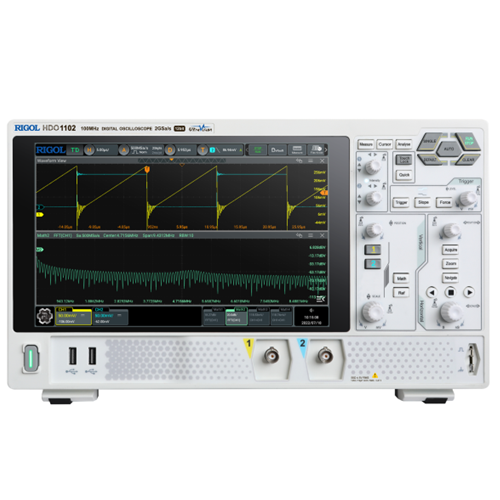

L'oscilloscopio digitale della serie DHO1000 è progettato per soddisfare i requisiti di progettazione, debug, collaudo del mercato principale degli oscilloscopi .
Questa nuova serie impiega il nuovissimo chipset "Centaurus" sviluppato da Rigol . E' in grado di raggiungere una velocità di acquisizione della forma d'onda pari a 1500000 wfms/s tramite UltraAcquire mode , possiede una profondità di memoria di 100Mpts , una risoluzione verticale a 12-bit. Tutte queste caratteristiche sono combinate con una performance eccellente di caratteristica di rumore ed una ottima precisione verticale . Il massimo per soddisfare le piu' svariate esigenze d' impiego e la massima precisione consentendo di fare un' esperienza straordinaria nel campo T&M.
Specifiche tecniche modello :
Model |
DHO1102 |
Analog Bandwidth
(-3 dB) |
100 MHz |
Input Channels
|
2+EXT |
Rise Time (10% to 90%, typical) |
≤3.5 ns |
Sampling Mode | Real-time sampling |
Max. Sample Rate of Analog Channels |
2-channel model: 2 GSa/s (single channel[1]), 1 GSa/s (all channels[3]) 4-channel model: 2 GSa/s (single channel[1]), 1 GSa/s (half channels[2]), 500 MSa/s (all channels[3]) |
Standard Memory
Depth |
2-channel model: 50 Mpts (single channel[1]), 25 Mpts (all channels[3]) 4-channel model: 50 Mpts (single channel[1]), 25 Mpts (half channels[2]), 12.5 Mpts (all channels[3]) |
Optional Memory Depth |
2-channel model: 100 Mpts (single channel[1]), 50 Mpts (all channels[3]) 4-channel model: 100 Mpts (single channel[1]), 50 Mpts (half channels[2]), 25 Mpts (all channels[3]) |
Max. Waveform Capture Rate |
50,000 wfms/s (Vector Mode) 1,500,000 wfms/s (UltraAcquire Mode) |
Vertical Resolution | 12 bits |
Hardware Real-
time Waveform Recording and Playing |
Up to 500,000 frames |
Peak Detect | Capture glitches as narrow as 2 ns |
NOTE:
[1]: If any one of the channels is enabled, it is called single channel mode.
[2]: For 4-channel models, if two of the channels are enabled, it is called half channels mode.
[3]: For 2-channel models, if two channels are enabled, it is called all channels mode. For 4-channel
models, if any three channels or all four channels are enabled, it is called all channels mode.
Specifiche tecniche serie:
• Brand-new chipset "Centaurus" developed by RIGOL
• Ultra-low noise floor for cleaner signals, measuring small signals accurately
• 12-bit vertical resolution[1]
• 70/100/200 MHz analog bandwidth (selectable), 2/4 analog channels, and 1 EXT channel
• Up to 2 GSa/s real-time sample rate
• Max. memory depth: 100 Mpts (optional)
• Vertical sensitivity range: 500 μV/div to 10 V/div
• Up to 1,500,000 wfms/s waveform capture rate with the UltraAcquire mode
• 10.1'' 1280*800 HD touch display
• User-friendly Flex Knobs, bringing smoother interaction
• Standard photoelectric encoder operating knobs, effectively prolonging its service life
• Standard USB Device & Host, LAN, and HDMI interfaces
Accessori Standard
Description | Single Probe order n° |
4 Passive HighZ Probes (350 MHz) Standard for DHO1204 2 Passive HighZ Probes (350 MHz) Standard for DHO1202 |
PVP2350 |
______________________________ | |
4 Passive HighZ Probes (150 MHz), Standard for DHO1104/ DHO1074 |
PVP3150 |
______________________________ | |
2 Passive HighZ Probes (150 MHz), Standard for DHO1102/ DHO1072 |
PVP3150 |
______________________________ | |
Power cord (based on destination country) | -- |
USB Cable | -- |
