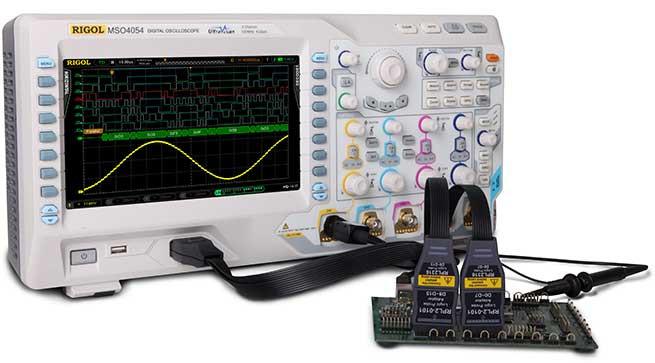

Oscilloscopio digitale, banda passante 200 MHz, 4 canali analogici, 16 digitali, display da 9 pollici e 110000 forme d'onda/sec.
Specifiche tecniche:
|
Bandwidth
|
200 MHz
|
|
Analog Channels
|
4 |
| Digital Logic Channels | 16 |
|
Vertical Sensitivity
|
1 mV/div - 10V/div
|
|
Real-time Sample Rate
|
4 GSa/s
|
|
Memory Depth
|
140 Million Points
|
|
Waveform Acquisition Rate
|
110,000 Waveforms per Second
|
|
Standard Interface
|
USB Host & Device, VGA, LXI, Trig Out, 10 MHz In/Out
|
|
Vertical Resolution
|
8 bits
|
|
Math
|
＋, －, ×, FFT, customizable user defined
|
|
Cursor Measurements
|
Manual, Track and Auto Measure modes
|
