Oscilloscopio Rigol MSO5152-E 150MHz mixed signals

da Rigol

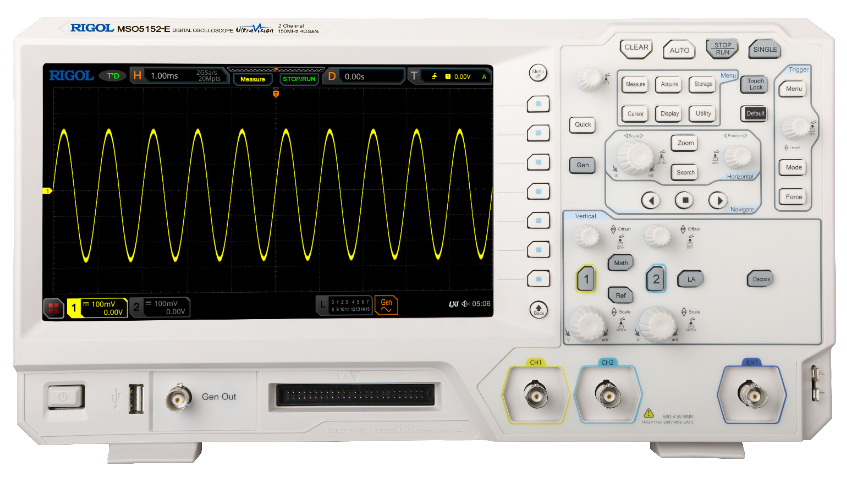

L' Oscilloscopio digitale MSO5152-E della serie MSO5000E  integra 7 strumenti indipendenti in 1 .

Include un' oscilloscopio digitale , un analizzatore di stati logici , un analizzatore di spettro , un generatore di forme d'onda arbitrarie (opzione) , un voltmetro digitale , un misuratore di frequenza e totalizzatore , un analizzatore di protocollo (opzione).

Specifiche tecniche:

Several modes Digital Oscilloscope , Digital Voltmeter ,  Logic Analyzer , Arbitrary Waveform Generator (Option) , Spectrum Analyzer , High-precision Frequency Counter and Totalizer , Protocol Analyzer (Option)
 150 MHz
Analog Channels
Digital Channels 16 (PLA2216 probe option is required to be ordered)
Max. Sample Rate of Analog Channel
 4 GSa/s (single-channel)
Sampling Mode Real-time sampling
Max Memory Depth Analog CHs
100 Mpts (single-channel), 50 Mpts (all channels)
Max Memory Depth Digital CHs 25 Mpts
Waveform Acquisition Rate
 ≥300,000 wfms/s    (Waveforms per Second)
Max. Frames of Waveform Recording 450.000
LCD  9-inch capacitive multi-touch screen
Display Resolution 1024 x 600
Hardware Mask Test Standard
Built-in Arbitrary Waveform Generator
25 MHz  ( optional )
Built-in Digital Voltmeter standard
Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB
Built-in Hardware Counter
6-digit frequency counter + totalizer
Search and Navigation
Standard supporting table display
Power Analysis
Built-in UPA (optional)
Serial Protocol Analysis RS232/UART, I2C, SPI, CAN, LIN, FlexRay, I2S, and MIL-STD-1553
Waveform Color Persistance standard


Datasheet serie Rigol MSO5000-E

User Guide serie Rigol MSO5000-E
