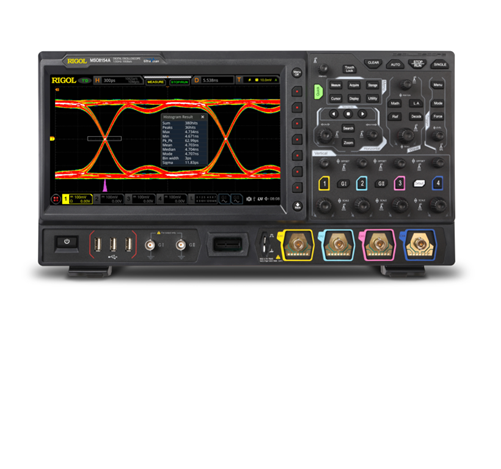

Oscilloscopio Rigol MSO8154A 1.5GHz mixed signals ( 4 Canali ANA + 16 Canali DIG )
da Rigol
Risparmia 20%
€9.899,00
€7.919,00
PER QUESTO PRODOTTO CONSULTARE LA SEZIONE "OFFERTE SPECIALI" DAL MENU' PRINCIPALE
Oscilloscopio digitale, banda passante 1.5GHz, 4 canali analogici e 16 digitali , display da 10.1 pollici touch screen , acquisizione ad oltre 600000 forme d'onda/sec. Integra 7 strumenti indipendenti in uno.
Specifiche tecniche:
|
Bandwidth
|
MSO8154A = 1.5GHz (Tramite le opzioni MSO8000A-BWXXXXX la larghezza di banda dello strumento può essere aumentata fino a 3GHz Single-Channel. Fare riferimento al datasheet sezione "ordering information" )
|
|
Analog Channels
|
4 |
| Digital Channels | 16 |
|
Vertical Sensitivity
|
1 mV/div - 10V/div
|
|
Real-time Sample Rate
|
10 GSa/s
|
|
Memory Depth
|
500 Million Points
|
|
Waveform Acquisition Rate
|
≥600,000 wfms/s (Waveforms per Second)
|
|
Interface
|
Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB (opt )
|
|
Vertical Resolution
|
8 bits
|
| No. of Math Functions | 4; 4 math functions available to be displayed at a time |
|
Operation
|
A+B, A-B, A×B, A/B, FFT, A&&B, A||B, A^B, !A, Intg, Diff, Sqrt, Lg, Ln, Exp, Abs, AX+B, LowPass,
HighPass, BandPass, and BandStop |
|
Cursor Measurements
|
Manual, Track and Auto Measure modes
|
| Several modules | Digital Oscilloscope , Digital Voltmeter , Logic Analyzer , Spectrum Analyzer , Arbitrary Waveform Generator (Option) , High-precision Frequency Counter and Totalizer , Protocol Analyzer (Option) |
Accessori Standard
| Order Information | Order No. |
| USB Cable | CB-USBA-USBB-FF-150 |
| _______________________________ | |
| Passive HighZ Probe x4 (500 MHz) | RP3500A |
| _______________________________ | |
| MSO8204A: Passive Low-impedance Probe x2 (1.5 GHz) MSO8154A: Passive Low-impedance Probe x2 (1.5 GHz) |
RP6150A |
| _______________________________ | |
| Front Protective Cover | MSO8000-FPC |
| _______________________________ | |
| Power Cord Conforming to the Standard of the Destination Country | ---- |
Manuali
MSO8000A_Datasheet
MSO8000A_Programming_Guide
MSO8000A_Quick_Guide
MSO8000A_User_Guide
