Prodigy PGY-QSPI-NL software decodificatore di protocollo Node Locked ( per Tektronix Windows Oscilloscope )

da Prodigy

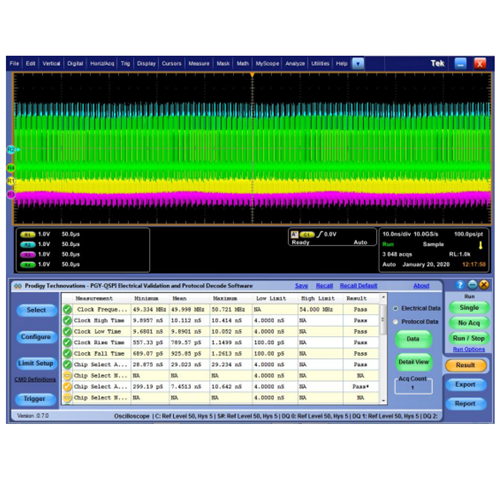

QSPI Electrical Validation and Protocol Decode Software offers electrical measurements compliance testing and protocol decoding as specified in QSPI specification. PGY-QSPI Electrical validation and Protocol decode software runs in Tektronix Oscilloscope and provides electrical measurements and protocol decode at the click of a button. This allows engineers quickly check for QSPI compliance and flexibility to debug the failure. In addition to this engineer can decode the command and response of QSPI to debug the communication. PGY-QSPI takes advantage of digital channels of MSO and provides the decoding of QSPI data lines.


The QSPI supports the following features:

  • Single and Dual Transfer rate (STR/DTR)
  • Supports electrical measurements and compliance testing for Ext SPI, Dual SPI and Quad SPI
  • Supports Triggering on command index and on S# falling edge
  • Supports Analog and Digital Channels of Tektronix MSO
  • Automated electrical measurements with customizable reference level of QSPI electrical signal
  • Customizable measurement limit setup for pass/fail validation of electrical signal to enable measurements
  • Ability to store the QSPI protocol data and electrical data in CSV and txt format
  • Report Generation
  • Supports offline analysis
