Prodigy PGY-SPMI-EX-PD (v2.0) Analizzatore di protocollo

da Prodigy
€9.348,00

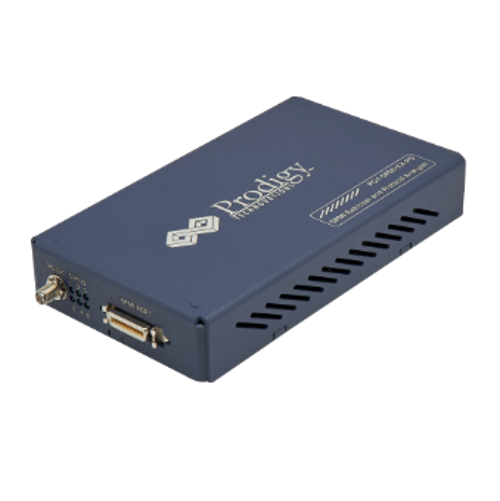

SPMI Exerciser and Protocol Decoder (v2.0)

SPMI Protocol Analyzer(PGY-SPMI-EX-PD) is the Protocol Analyzer with multiple features to capture and debug communication between host and design under test. SPMI (System Power Management Interface) is a MIPI (Mobile Industry Processor Interface) standard with a 2-wire synchronous serial, a bidirectional interface that connects the integrated Power Controller(PC) of a System-on-Chip (SoC) processor system with one or more Power Management Integrated Circuits (PMIC) voltage regulation systems.

PGY-SPMI-EX-PD is the leading instrument that enables the design and test engineers to test the SPMI designs for its specifications by configuring PGY-SPMI-EX-ED as master/slave, generating SPMI traffic with time variation and error injection capability and decoding SPMI Protocol packets.

Features:

  • Supports SPMI v 1.0/ 2.0 specifications
  • Ability to configure it as Master or Slave
  • Supports Sole Master feature
  • Supports Request Capable Slave (RCS) feature
  • Supports the complex BUS arbitration process
  • Generate different SPMI Packets
  • Error injection such as parity error, ACK/NACK error, and Skip SSC error
  • Variable SPMI data speeds (32kHz – 26Mhz1), Voltage drive levels (1.2 or 1.8), and Duty Cycle (25%,50%, and 75%).
  • Simultaneously generate SPMI traffic and Protocol decode of the Bus
  • Continuous streaming of protocol data to HDD/SSD
  • A timing diagram of Protocol decoded bus
  • Listing view of Protocol activity
  • Error Analysis in Protocol decoded data
  • Ability to write exerciser script to combine multiple
  • data frame generation at different data speeds
  • USB2/3 host computer interface
  • API support for automation in Python and C++
  • Flexibility to upgrade to the unit for evolving SPMI Specification
  • Optional Protocol Implementation Compliance Statement (PICS) supports scripts

PGY-SPMI-EX-PD-DataSheet.pdf
