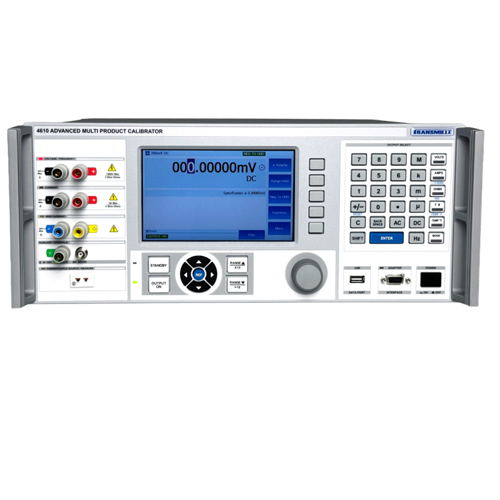

| model | Transmille 4610A |
| SKU | TR_4610A |
| Type | Advanced Multiproduct Calibrator |
| Price | On request – contact info@alldata.it |
| DC Voltage | 0 – 1000V DC |
| DC Current | 0 – 30 A DC Current |
| AC Voltage | 2mV – 1000V AC, 10 Hz to 1 MHz |
| AC Current | 20 uA – 30 A AC, 10 Hz to 30 kHz |
| Passive Resistance | 0 Ohms to 1 GOhms |
| Variable Resistance | 0 Ohms to 1 GOhms ( Wire, 2 Wire Compensated & 4 Wire) |
| Passive Capacitance | 1nF - 10uF |
| Variable Capacitance | 300pF to 100mF |
| Frequency | 10Hz - 1.2MHz |
| Temperature (Thermocouple) | J / K / T / R / S / B / U / N / E / L / U / C / 10uV°C |
| Temperature (PRT / RTD) |
2 Wire, 2 Wire compensated & 4 Wire output, selectable R0 |
| POWER (Simultaneous Voltage & Current) | Options available, including Harmonic Generation |
| Oscilloscope Option | up to 3 GHz (option) |
4600A Series Brochure (EN)
4610A Series Operation Manual (EN)
4610A Series Extended Specification (EN)
